forms

Classes to layout fields on a form. These are mostly used for specifying the form_display attribute in Admin classes, but they can be used on their own as well. Form classes can be used recursive.

class camelot.view.forms.Break

End a line in a multi-column form

class camelot.view.forms.DelayedTabWidget(widgets, tabs, parent=None)

Helper class for TabForm to delay the creation of tabs to the moment the tab is shown.

render_tab(index)

Render the tab at index

class camelot.view.forms.Form(content, scrollbars=False, columns=1)

Base Form class to put fields on a form. The base class of a form is a list. So the form itself is nothing more than a list of field names or sub-forms. A form can thus be manipulated using the list’s method such as append or insert.

A form can be converted to a Qt widget by calling its render method.

Forms are defined using the form_display attribute of an Admin class:

class Admin( EntityAdmin ):
    form_display = Form( [ 'title', 'short_description',
                           'release_date' ] )

and takes these parameters :

param content:an iterable with field names or sub-forms to render param columns:the number of columns in which to order the fields.

get_fields()

Returns:the fields, visible in this form

remove_field(original_field)

Remove a field from the form, This function can be used to modify inherited forms.

Parameters:original_field – the name of the field to be removed Returns:True if the field was found and removed

render(widgets, parent=None, toplevel=False)

Parameters:

• widgets – a camelot.view.controls.formview.FormEditors object that is able to create the widgets for this form
• parent – the QtGui.QWidget in which the form is placed
• toplevel – a boolean indicating if this form is toplevel, or a child form of another form. A toplevel form will be expanding, while a non toplevel form is only expanding if it contains other expanding elements.

Returns:

a QtGui.QWidget into which the form is rendered

replace_field(original_field, new_field)

Replace a field on this form with another field. This function can be used to modify inherited forms.

:param original_field : the name of the field to be replace :param new_field : the name of the new field :return: True if the original field was found and replaced

class camelot.view.forms.GridForm(grid, nomargins=False)

Put different fields into a grid, without a label. Row or column labels can be added using the Label form:

GridForm([['title', 'short_description'], ['director','release_date']])

append_column(column)

Parameters:column – the list of fields that should come in the additional column

use this method to modify inherited grid forms

append_row(row)

Parameters:row – the list of fields that should come in the additional row

use this method to modify inherited grid forms

class camelot.view.forms.GroupBoxForm(title, content, scrollbars=None, min_width=None, min_height=None, columns=1)

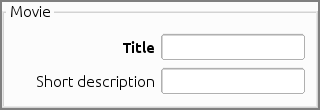

Renders a form within a QGroupBox:

class Admin(EntityAdmin):
  form_display = GroupBoxForm('Movie', ['title', 'short_description'])

class camelot.view.forms.HBoxForm(columns, scrollbars=False)

Render different forms in a horizontal box:

form = forms.HBoxForm([['title', 'short_description'], ['director', 'release_date']])

class camelot.view.forms.Label(label, alignment='left', style=None)

Render a label using a QtGui.QLabel

class camelot.view.forms.Stretch

A stretchable space with zero minimum size, this is able to fill a gap in the form if there are no other items to fill this space.

class camelot.view.forms.TabForm(tabs, position='North')

Render forms within a QtGui.QTabWidget:

from = TabForm([('First tab', ['title', 'short_description']),
                ('Second tab', ['director', 'release_date'])])

add_tab(tab_label, tab_form)

Add a tab to the form

Parameters:

• tab_label – the name of the tab
• tab_form – the form to display in the tab or a list of field names.

add_tab_at_index(tab_label, tab_form, index)

Add a tab to the form at the specified index

Parameters:

• tab_label – the name to the tab
• tab_form – the form to display in the tab or a list of field names.
• index – the position of tab in the tabs list.

get_tab(tab_label)

Get the tab form of associated with a tab_label, use this function to modify the underlying tab_form in case of inheritance

:param tab_label : a label of a tab as passed in the construction method :return: the tab_form corresponding to tab_label

class camelot.view.forms.VBoxForm(rows)

Render different forms or widgets in a vertical box:

form = forms.VBoxForm([['title', 'short_description'], ['director', 'release_date']])

class camelot.view.forms.WidgetOnlyForm(field)

Renders a single widget without its label, typically a one2many widget

camelot.view.forms.structure_to_form(structure)

Convert a python data structure to a form, using the following rules :

• if structure is an instance of Form, return structure
• if structure is a list, create a Form from this list

This function is mainly used in the Admin class to construct forms out of the form_display attribute
